QFlash ZOOM 280

The QFlash ZOOM 280 moving head can be controlled via the DMX protocol, allowing operation with standalone programs in both audio mode and master/slave mode.
When operating via DMX, it offers between 11 and 18 DMX channels, expanding its features and effects. It includes linear dimmer control by color and strobe functions, either per LED or across the entire fixture.

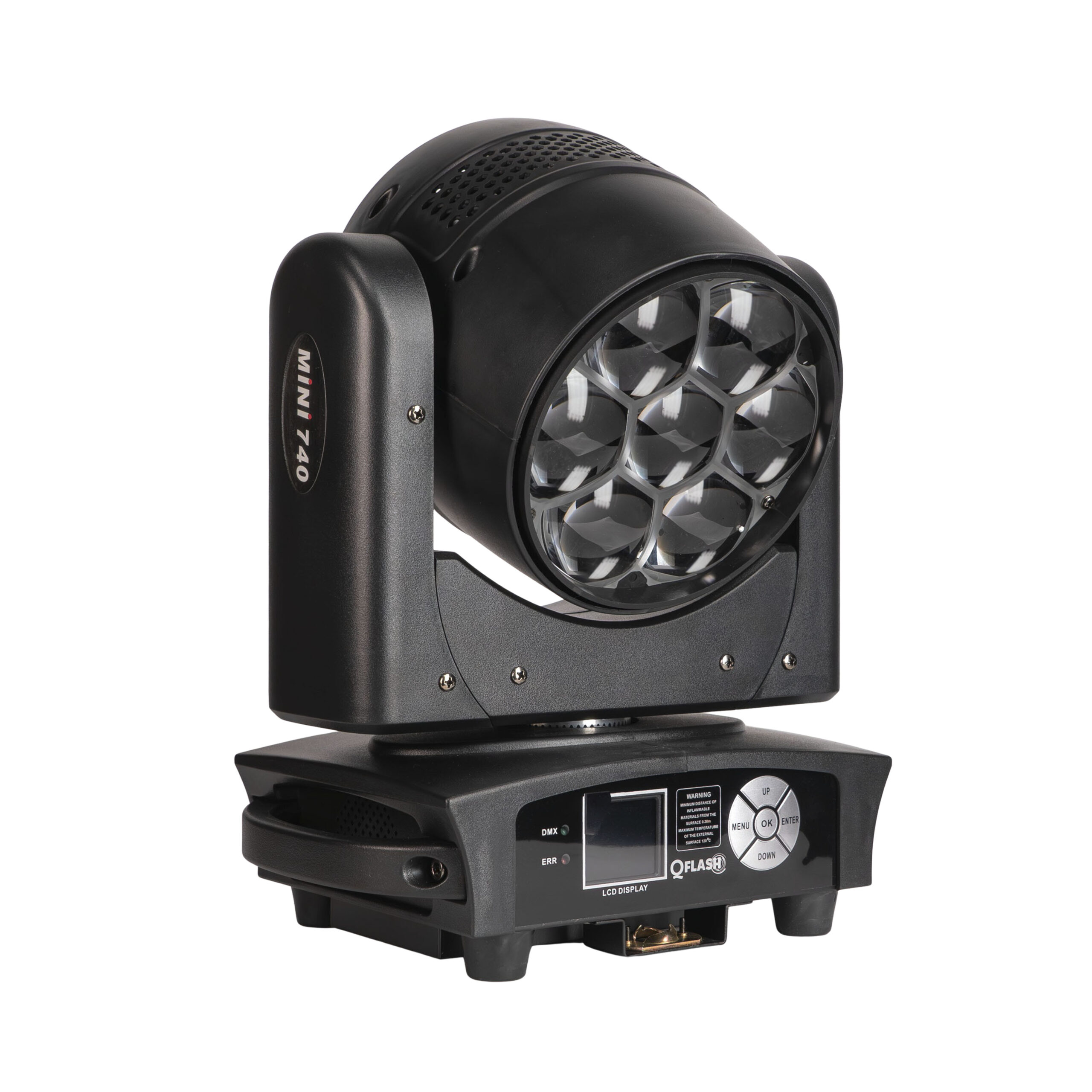

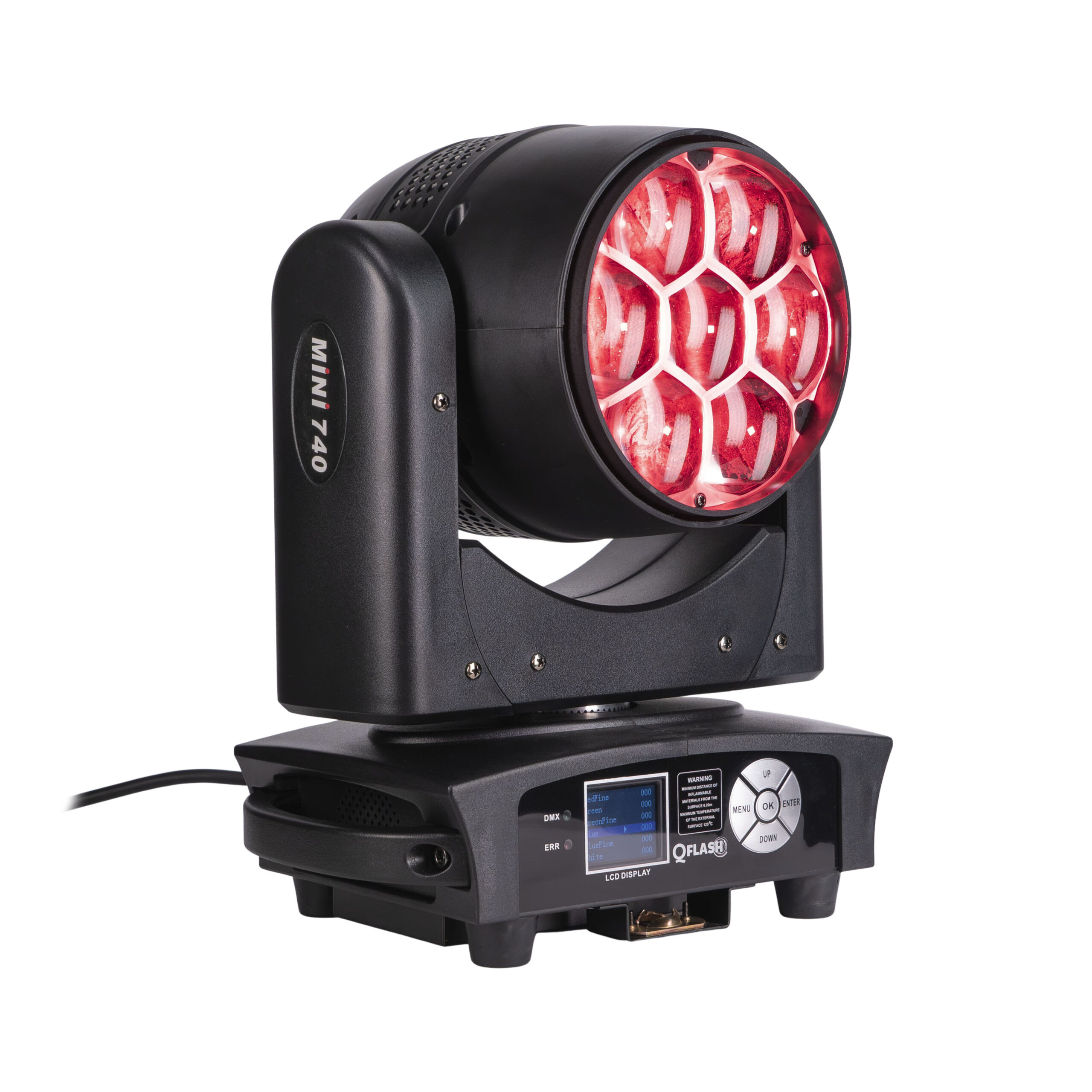

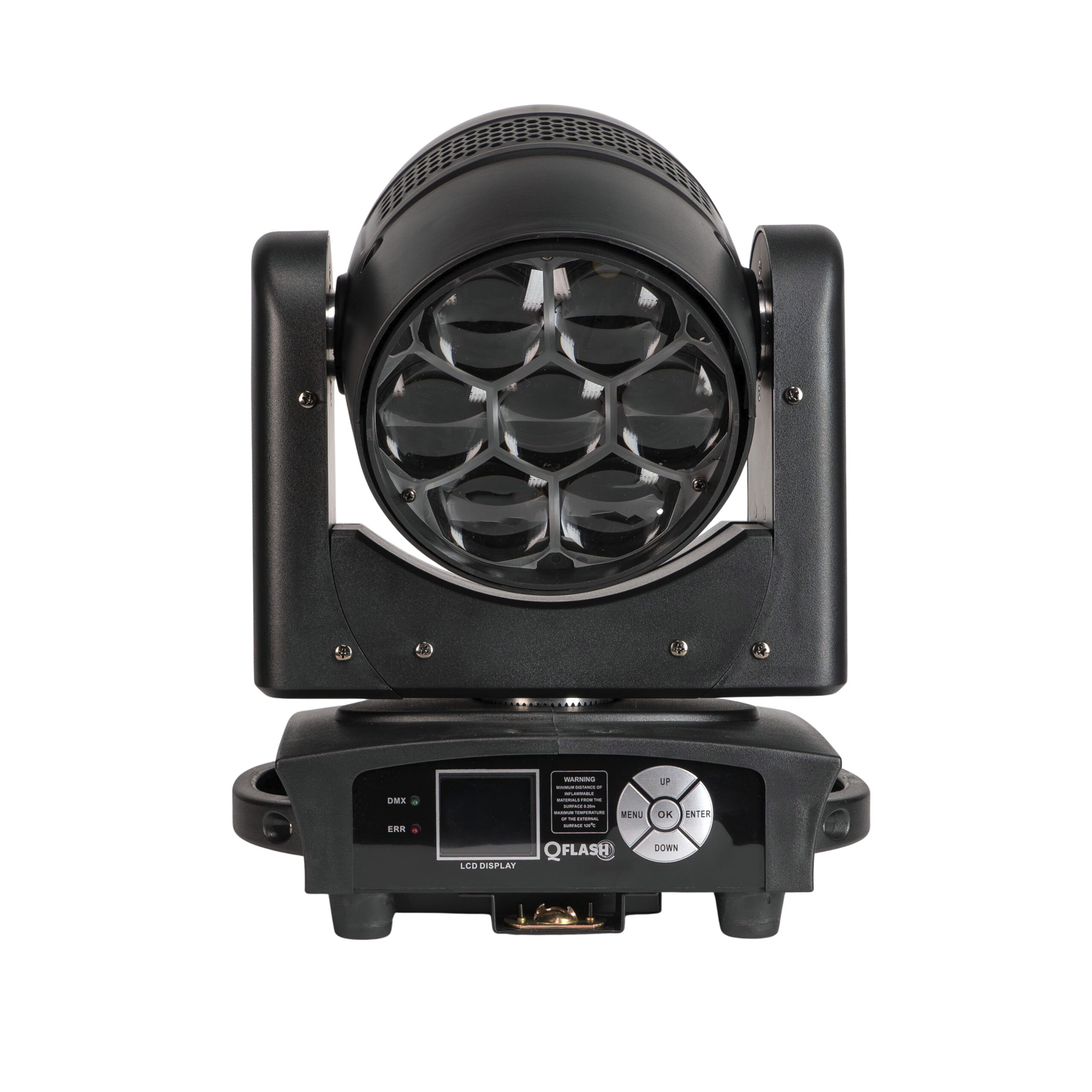

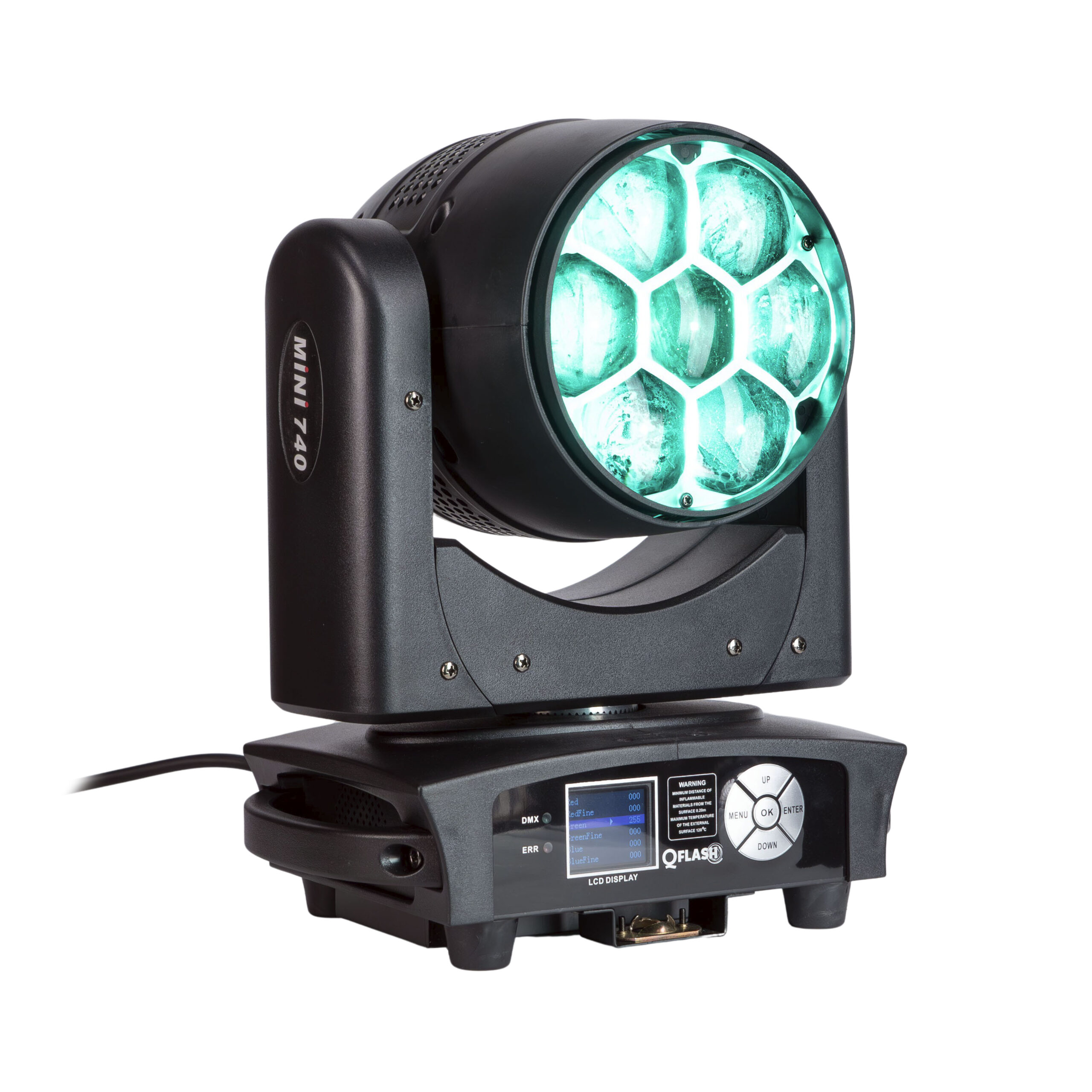

The QFlash ZOOM 280 moving head features the latest professional lighting technology, equipped with a total of 7 ultra-bright 40W 4-in-1 RGBW LEDs.
Thanks to its high-precision motors, movements on both axes (pan and tilt) are extremely fast and smooth, enabling the creation of dynamic visual shows with impressive color blending and effects.
To support these effects, the QFlash ZOOM 280 features a motorized, DMX-controlled zoom with a range of 30º to 105º, allowing precise adjustment of the beam angle to create different lighting intensities and visual effects.
It includes a PowerCON power connector and a 3-pin XLR connection for DMX signal input and output, ensuring secure and signal transmission for lighting control.

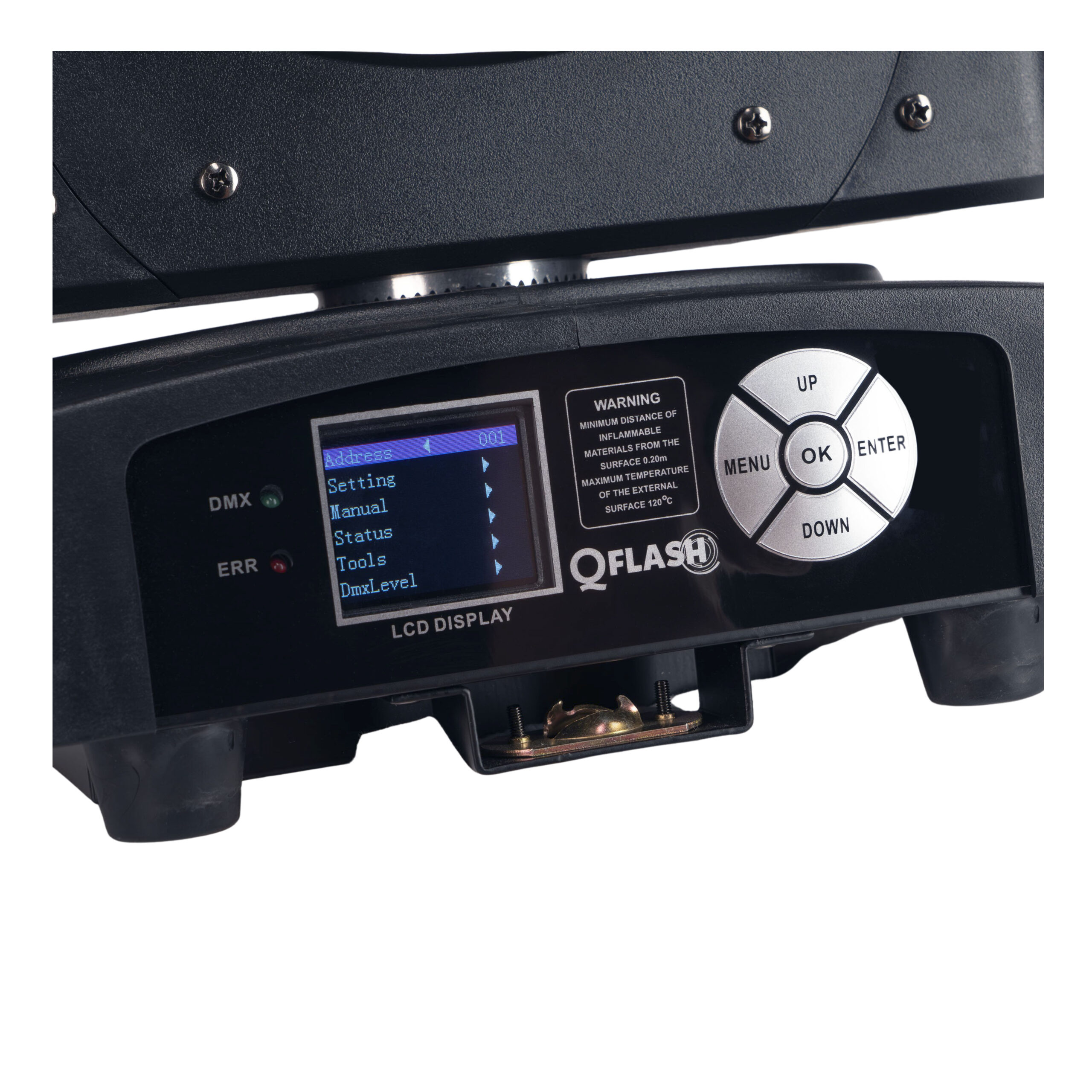

The front panel features s a display that facilitates menu navigation and programming using control buttons. Configurable menu options include Pan and Tilt inversion, audio sensitivity adjustment, and operating mode selection.

• Light Source: 7 ultra-bright 40W 4-in-1 RGBW LEDs.
• Effect Type: Bee Eye Wash + Zoom.
• Power Consumption: 350W.
• Control Modes: DMX 512, automatic mode.
• DMX Channels: 11/18 channels.
• Color: 16.7 million color combinations.
• Active Cooling: Built-in fan for optimal heat dissipation.
• Strobe: High-speed strobe effect with a range of 1 to 25 flashes per second. Single-color strobe also allows color mixing in the strobe effect.
• Zoom Adjustment: 105º to 30º.
• PAN: 540º
• TILT: 280º
• Control: LCD screen with buttons for configuration.
• Protection: IP 20.
• Connections: PowerCON for power and 3-pin XLR for DMX signal.
• Color Temperature: 2800K–8500K.
• Color: Black.
• Voltage: 180V–240V / 50–60Hz.
